Self-Developed Die Head
1. It only takes 30 to 60 minutes to change the color of the die head.
2. Front-adjustable fluid adjustment device, more convenient operation.
3. Bidirectional spiral flow channel, eliminating the confluence line.
4. Segmented temperature control, more precise temperature control.
5. Core-pulling 100 point electric servo parison control.
6. Instantaneous blowing of the die head function.

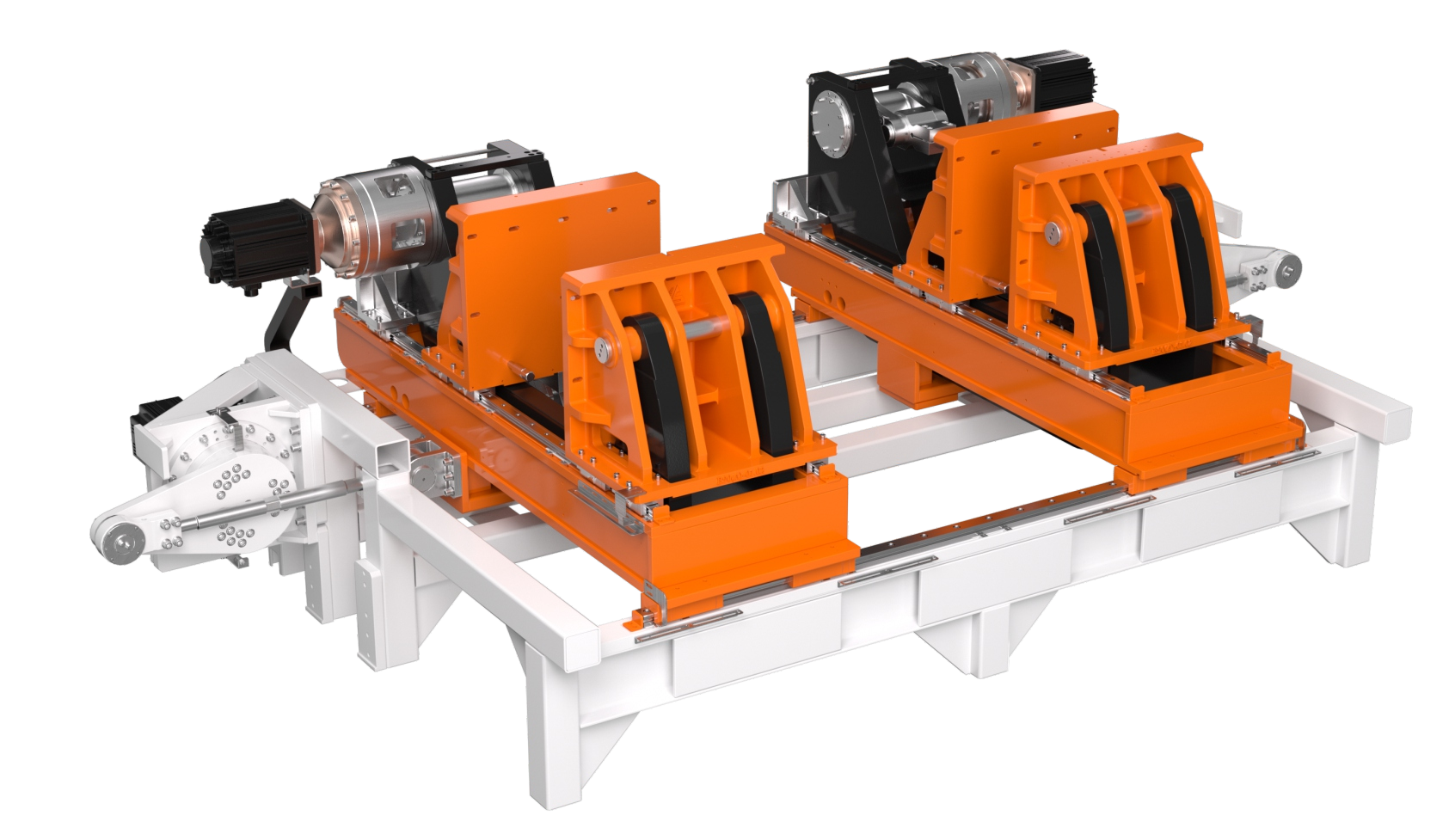

Self-Developed Clamping Unit
1. Low center of gravity improves equipment stability, reduces vibration, and ensures smooth production.
2. Servo motor drive is adopted with a repeatability accuracy of ±0.3mm and an idle action time of no more than 6 seconds, to ensure precise movement and effectively reduce energy consumption.
3. The self-developed C-frame Clamping structure is adopted to concentrate the cohesive force at the center of the mold, reduce deformation, and reduce the height of the mold frame.
4. The force balance design ensures that each part is evenly stressed and extends the service life of the equipment.
5. The maximum clamping force can reach to 30 ton.

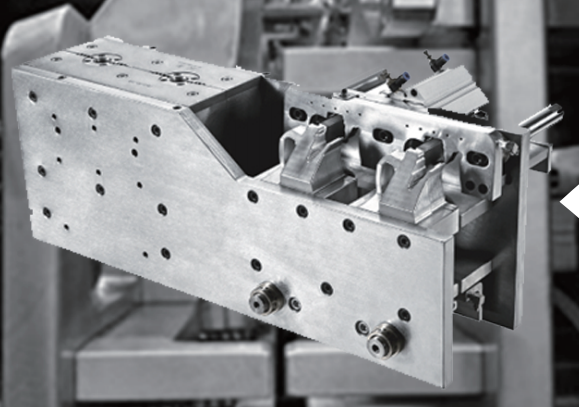

Electric Blow Pin unit
1. The linear guide design ensures the high precision of the blow pin movement.
2. The air pipe and water pipe are built into the pen, which is simple and leak-free.
3. The self-developed rapid cooling installation is used to achieve rapid temperature exchange in the bottle and improve the cooling speed of the product.
4. The maximum bottleneck cutting force can reach to 5.2 ton.
5. Blow pin insertion stroke 200mm, the adjustment stroke 70mm.
Embracing Keel Frame
1. Optimize the structure, reduce vibration and shaking, and improve production speed and efficiency.
2. Use wear-resistant and durable materials to effectively extend the life of the frame.
3. High-strength structural frame, increase safety devices and protection measures to ensure safe operation.

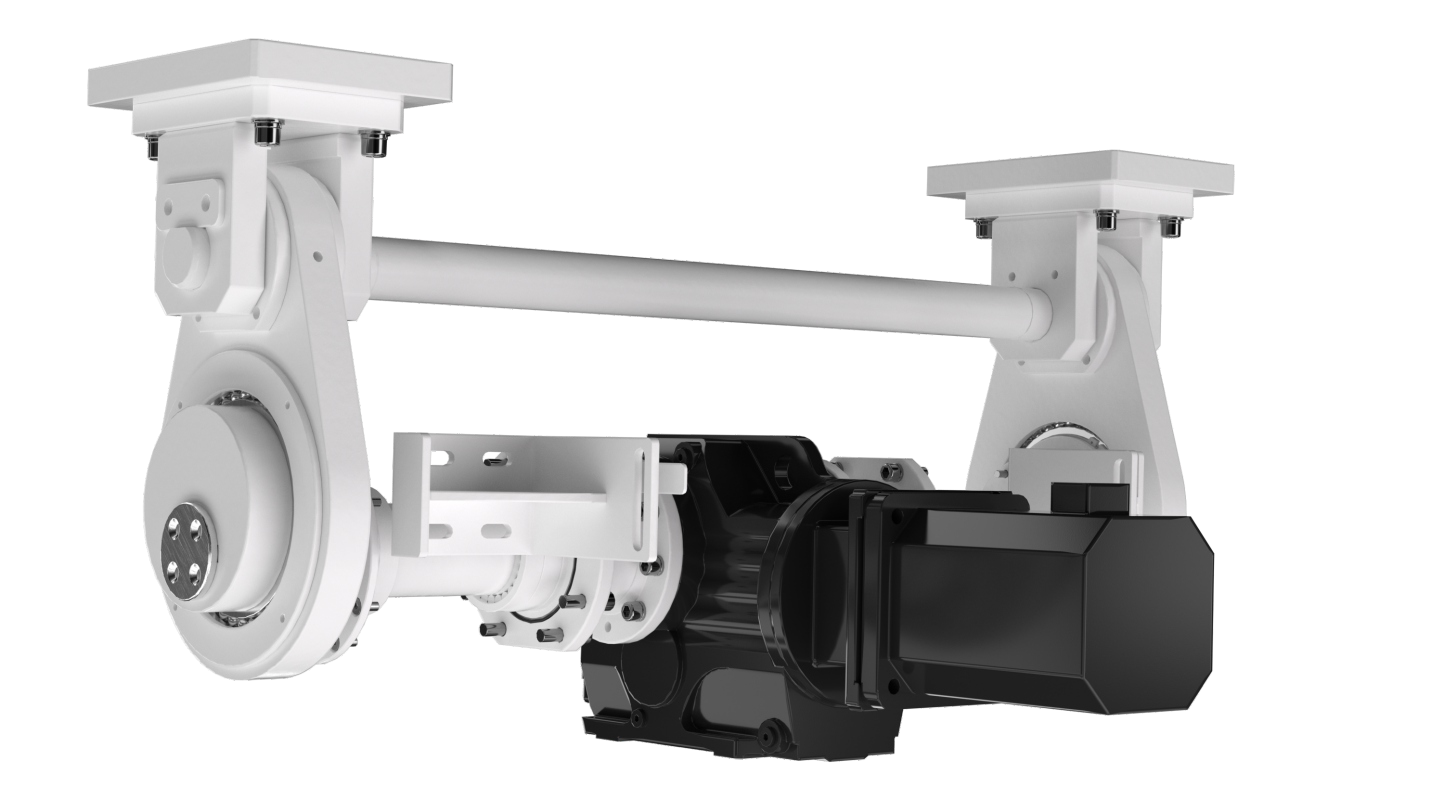

Servo Electric Lifting Device
1. The servo motor supports position control and coordinate multi-point control.
2. Flexible programming adjustment can be made to optimize motion products and production needs.
3. Quick response to ensure smooth rise and fall.
4. Adopt servo motors of internationally renowned brands to ensure long-term stable operation and adapt to various environments.

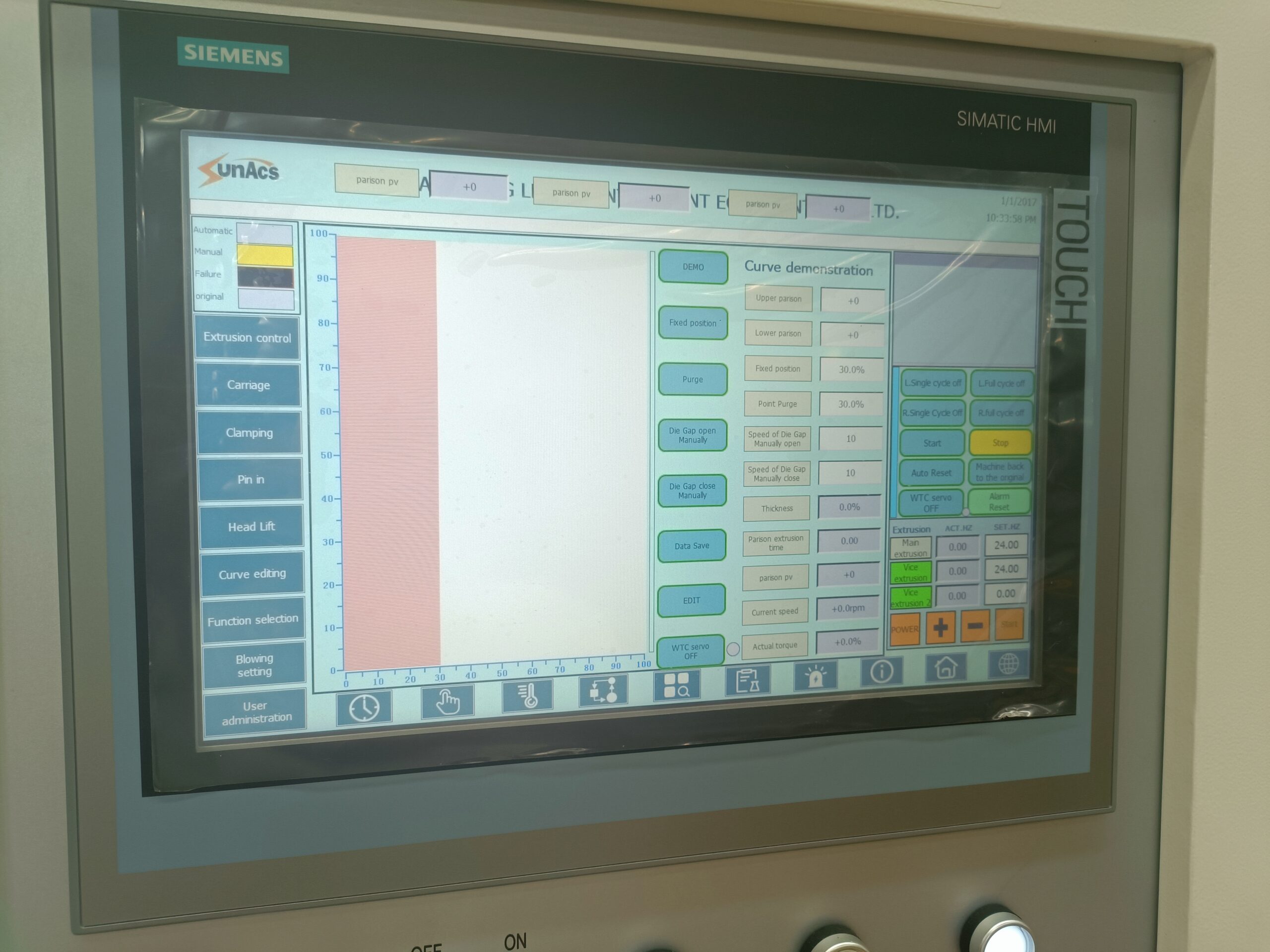

Electric parison control system
1. 100 point electric parison control system
2. 12 inch Multi-language Siemens HMI
3. S7-1500 Operating System

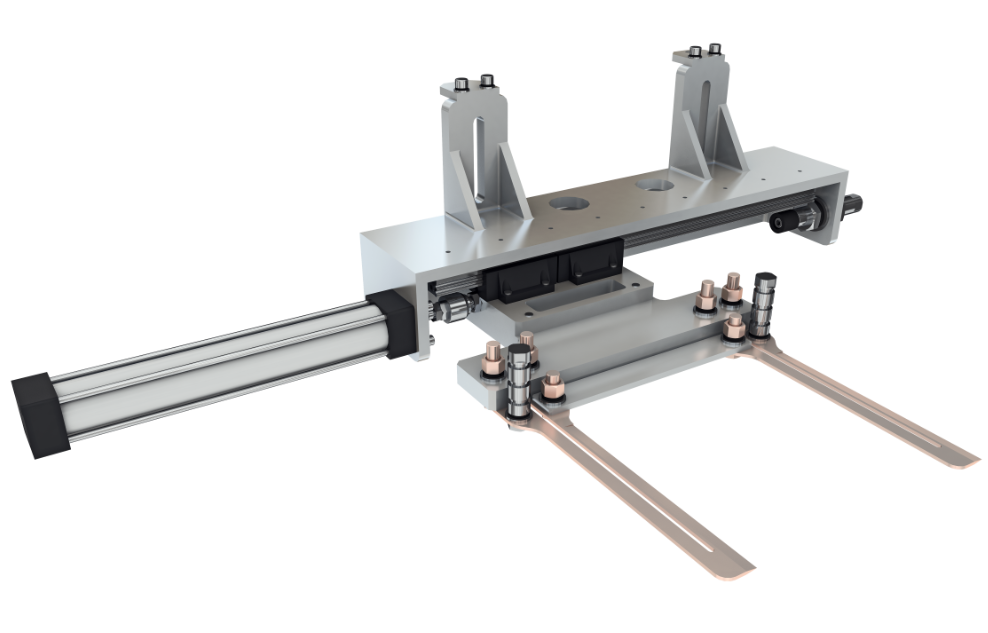

Hot & Cold Cutters
Cutter driven by cylinder, to save the energy, when using cool cutter, no
need to warm up the cutter. Cool/hot cut only need to change the blade;
Auto deflasher function
